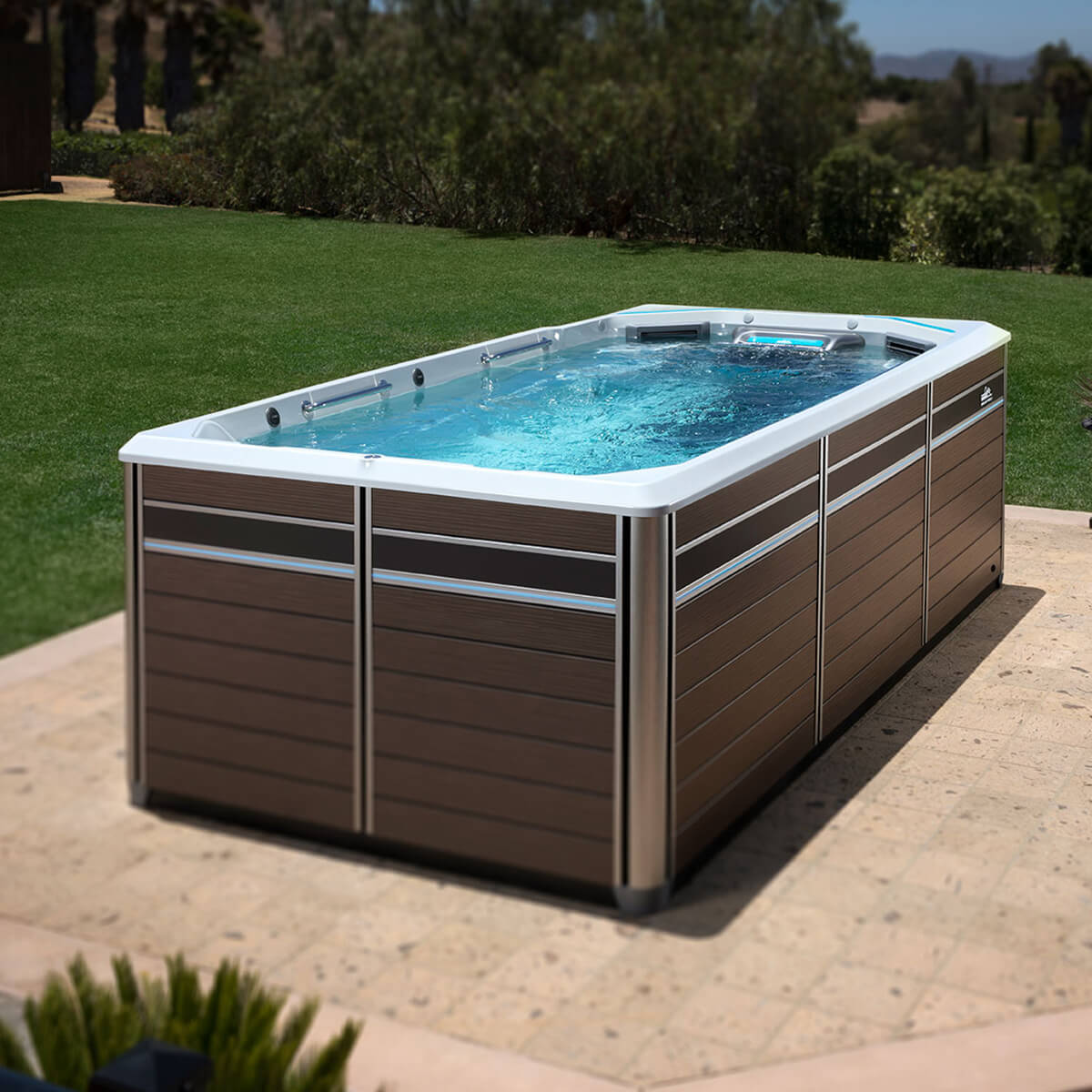

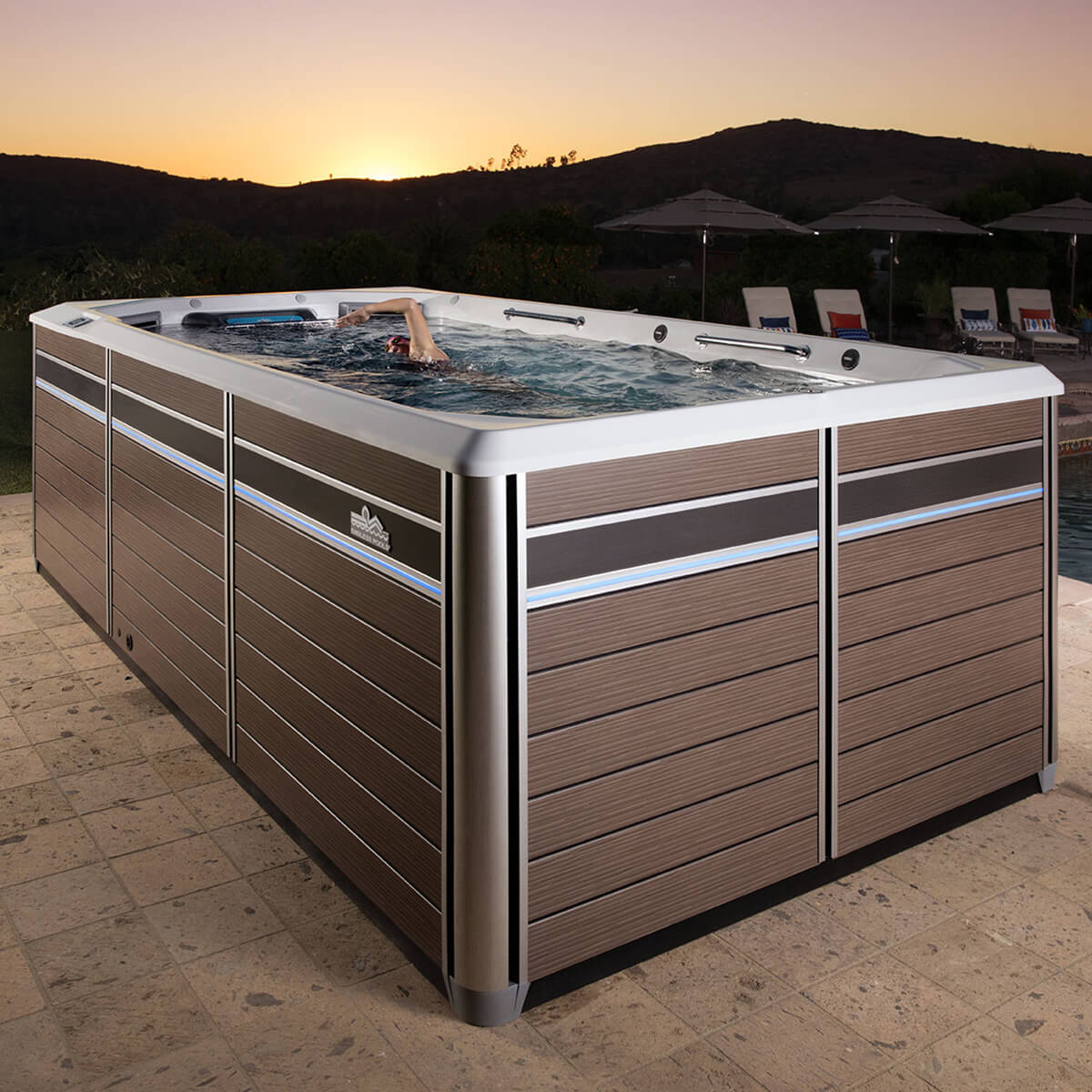

E550 Endless Pools® Fitness Systems
When you want the best aquatic fitness and swim experience, an ordinary “swim spa” isn’t going to cut it.
The E550 features the Endless Pools Swim Machine and (optional) underwater treadmill, for the great low-impact workouts we are known for. However, it’s not what it has that makes the E550 so unique, it’s what it doesn’t have! The spa seating has been removed, the filtration and steps relocated to the front, and the width extended to 94” (from the standard 89”). With more room dedicated to swimming and exercising, including standing spa jets for post-workout rejuvenation, the E550 is the most spacious Fitness System for all your exercise needs.
|Spec||58″ Swim & Tread||58″ Swim|
|Dimensions||15' L X 58" H X 94" W||15' L X 58" H X 94" W|
|Water Capacity||2,360 Gallons||2,390 Gallons|
|Weight||3,680 Lbs (Dry) / 25,112 Lbs (Filled*)||3,575 Lbs (Dry) / 25,258 Lbs (Filled*)|
|Shell Color Options||Alpine White or Ice Gray||Alpine White or Ice Gray|
|Cabinet Color Options||Dark Mocha or Gray Oak||Dark Mocha or Gray Oak|
|Swim Technology||Endless Pools® Swim Machine||Endless Pools® Swim Machine|
|Swim Power Unit||5 HP Hydraulic Power Unit||5 HP Hydraulic Power Unit|
|Hyrdomassage Jets – 23||1 Large Jet, 6 Medium Rotary Jets, 16 Mini Jets||1 Large Jet, 6 Medium Rotary Jets, 16 Mini Jets|
|Hyrdomassage Jet Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – 1 Speed Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – 1 Speed Pump|
|Control System||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel|
|Water Management System||UVC + CD Ozone||UVC + CD Ozone|
|Circulation Pump||Hi-Flow Circulation Pump||Hi-Flow Circulation Pump|
|Effective Filtration Area||4 x 50 Square Feet (200 Sq. Ft.)||4 x 50 Square Feet (200 Sq. Ft.)|
|Lighting System||24 Multi-Color LED Points of Lights & Exterior Illumination Bar||24 Multi-Color LED Points of Lights & Exterior Illumination Bar|
|Substructure||14-Gauge Galvanized Steel Frame||14-Gauge Galvanized Steel Frame|
|Base Pan||Thermoformed ABS Base Pan||Thermoformed ABS Base Pan|
|Energy Efficiency||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law|
|Stainless Steel Grab Rails||5 Stainless Steel Rails||5 Stainless Steel Rails|
|Music Option||8 Speakers + Subwoofer, Bluetooth® Enabled||8 Speakers + Subwoofer, Bluetooth® Enabled|
|Exercise Equipment Options||Swim Tether & Resistance Bands||Swim Tether & Resistance Bands|

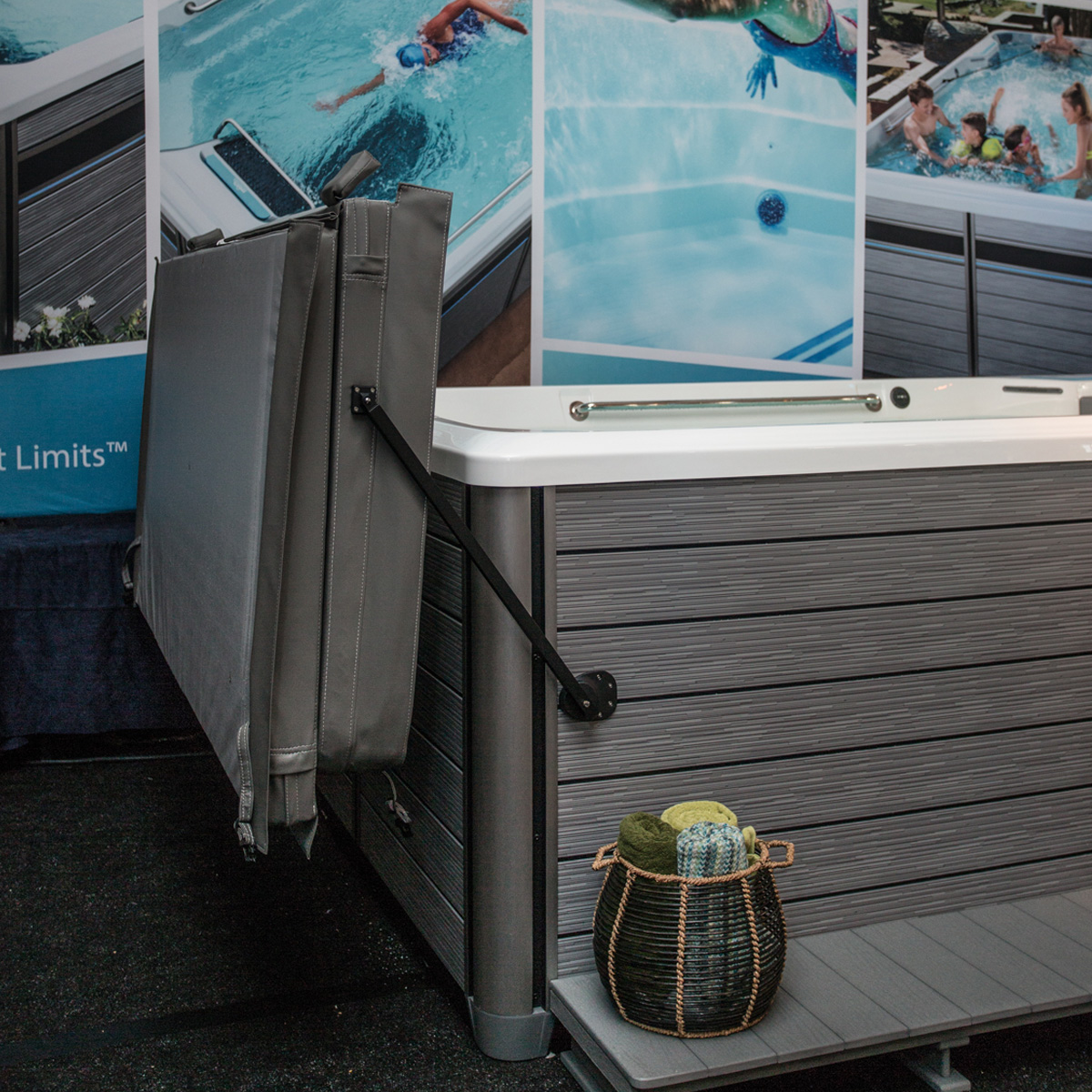

|Vinyl Cover & Lifter Options||Watkins Covers & Lifters, VacuSeal® Cover System, or CoverCradle®/ProLift® III||Watkins Covers & Lifters, VacuSeal® Cover System, or CoverCradle®/ProLift® III|
|Additional Options||Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App, Fit@Home™ Wi-Fi & Mobile App, CoolZone™ Cooling System||Endless Pools® Pace Display, Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App, Fit@Home™ Wi-Fi & Mobile App, CoolZone™ Cooling System|
|*Includes water and 10 adults weighing 175 lbs. each|

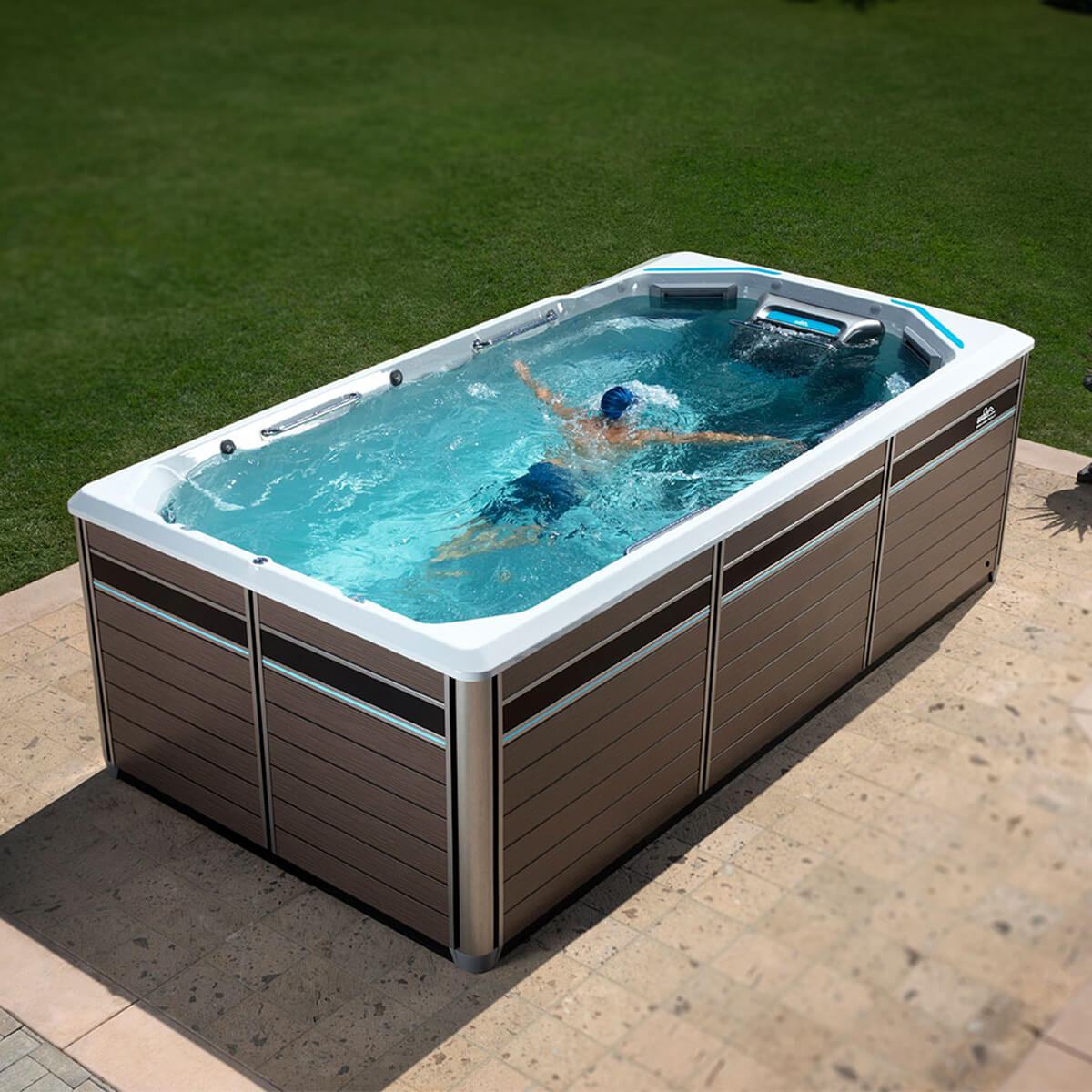

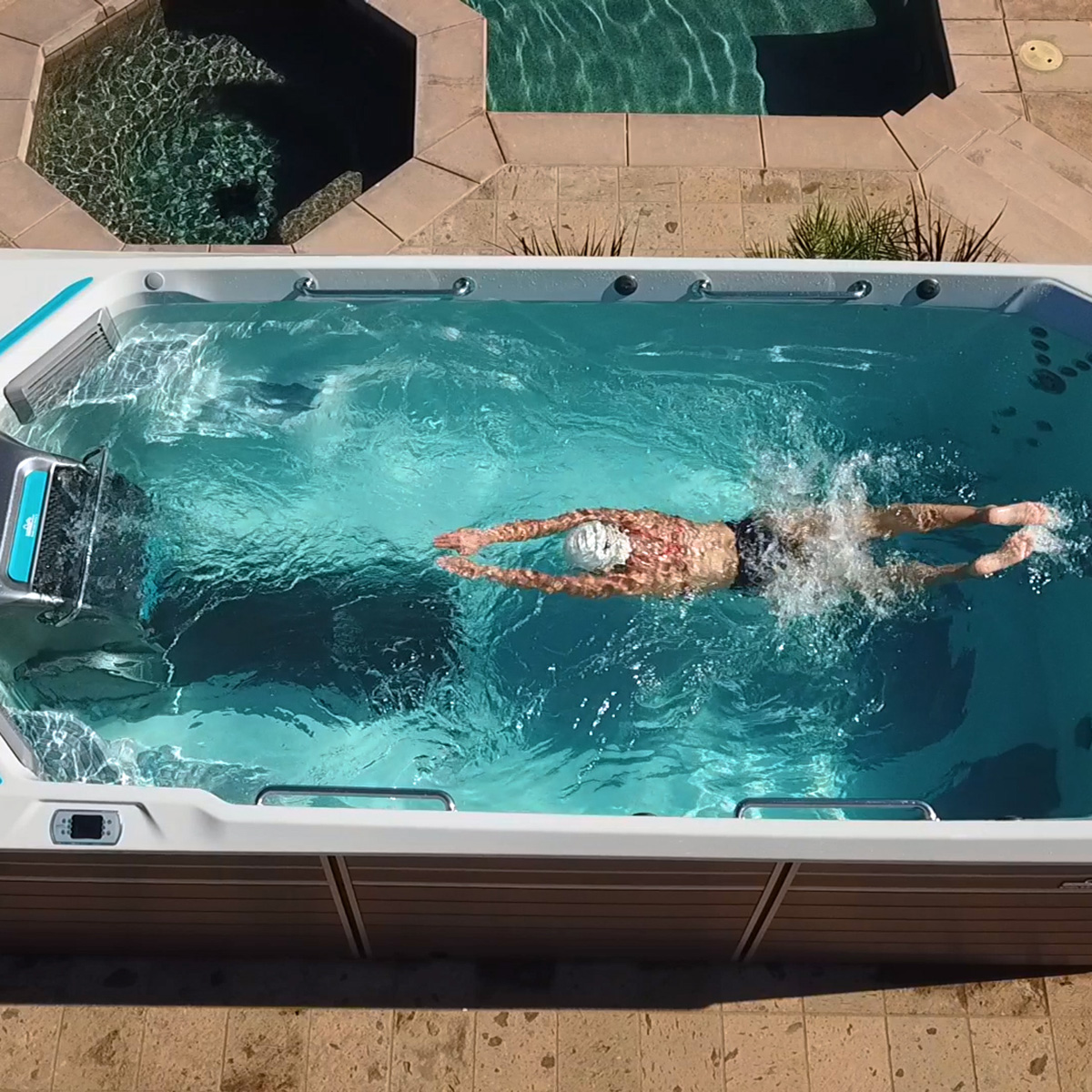

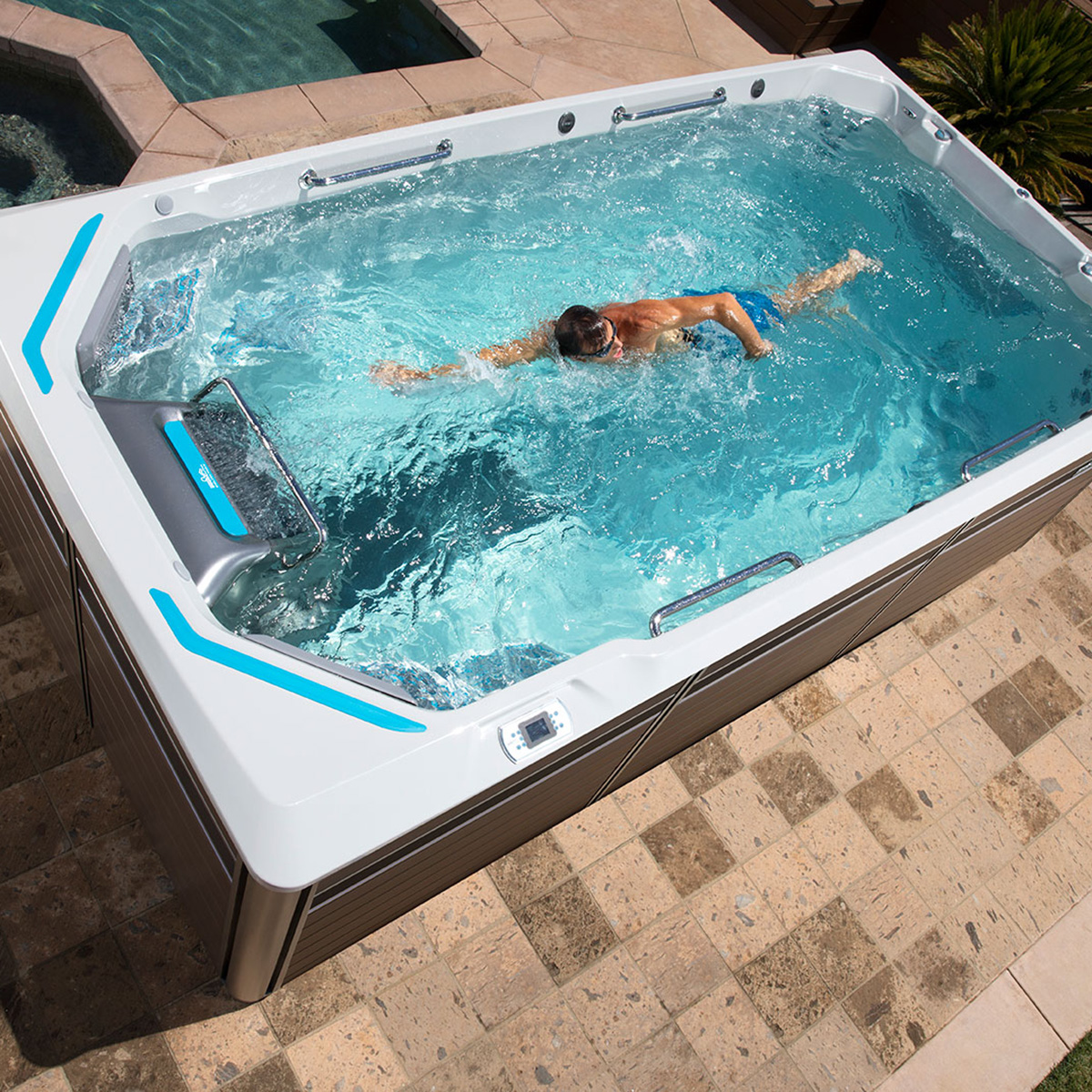

The Original Endless Pools® Swim Machine
Swim Machine flow speed ranges from 3.43 to 1:08 minutes per 100 yards and can be easily adjusted for precise pace selection.

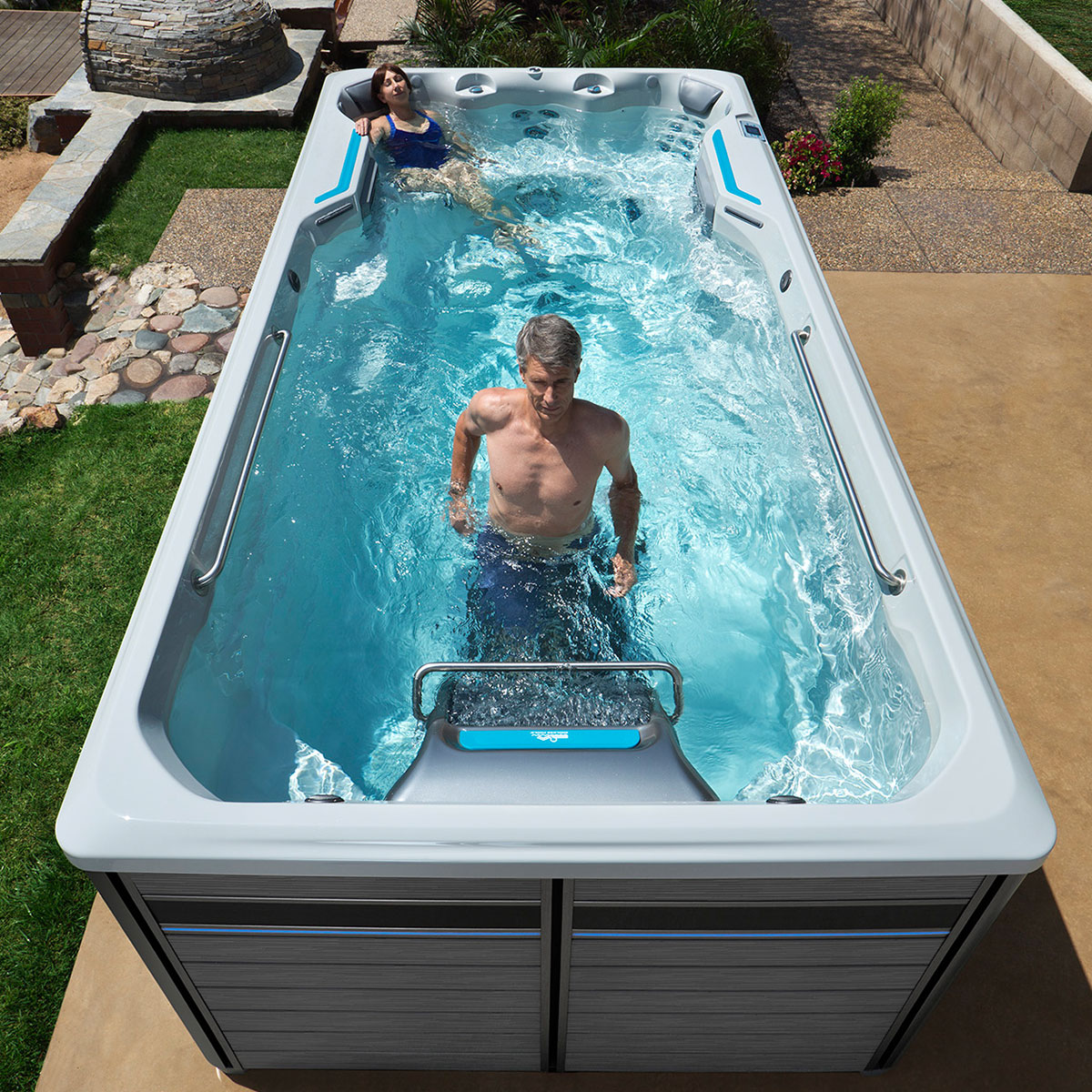

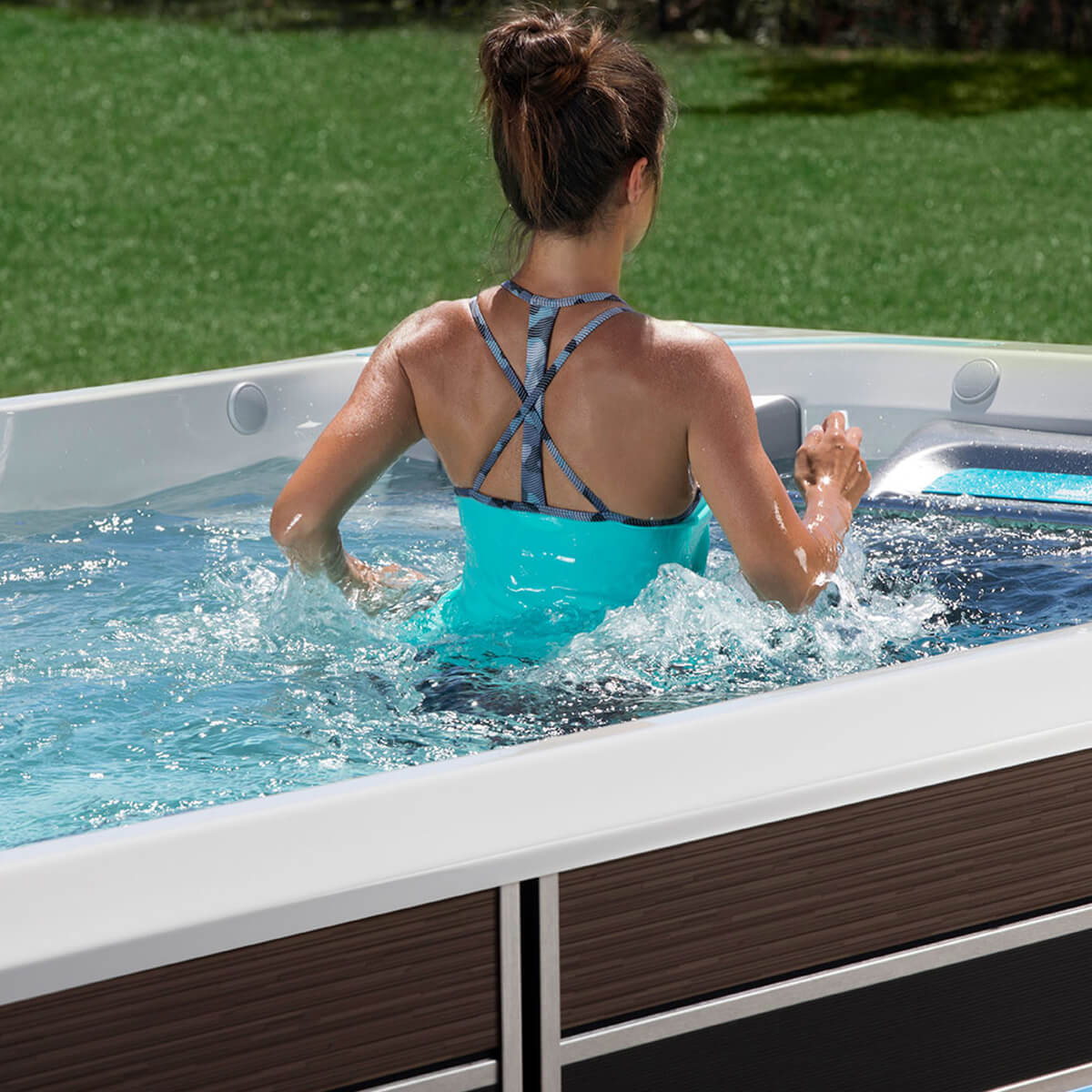

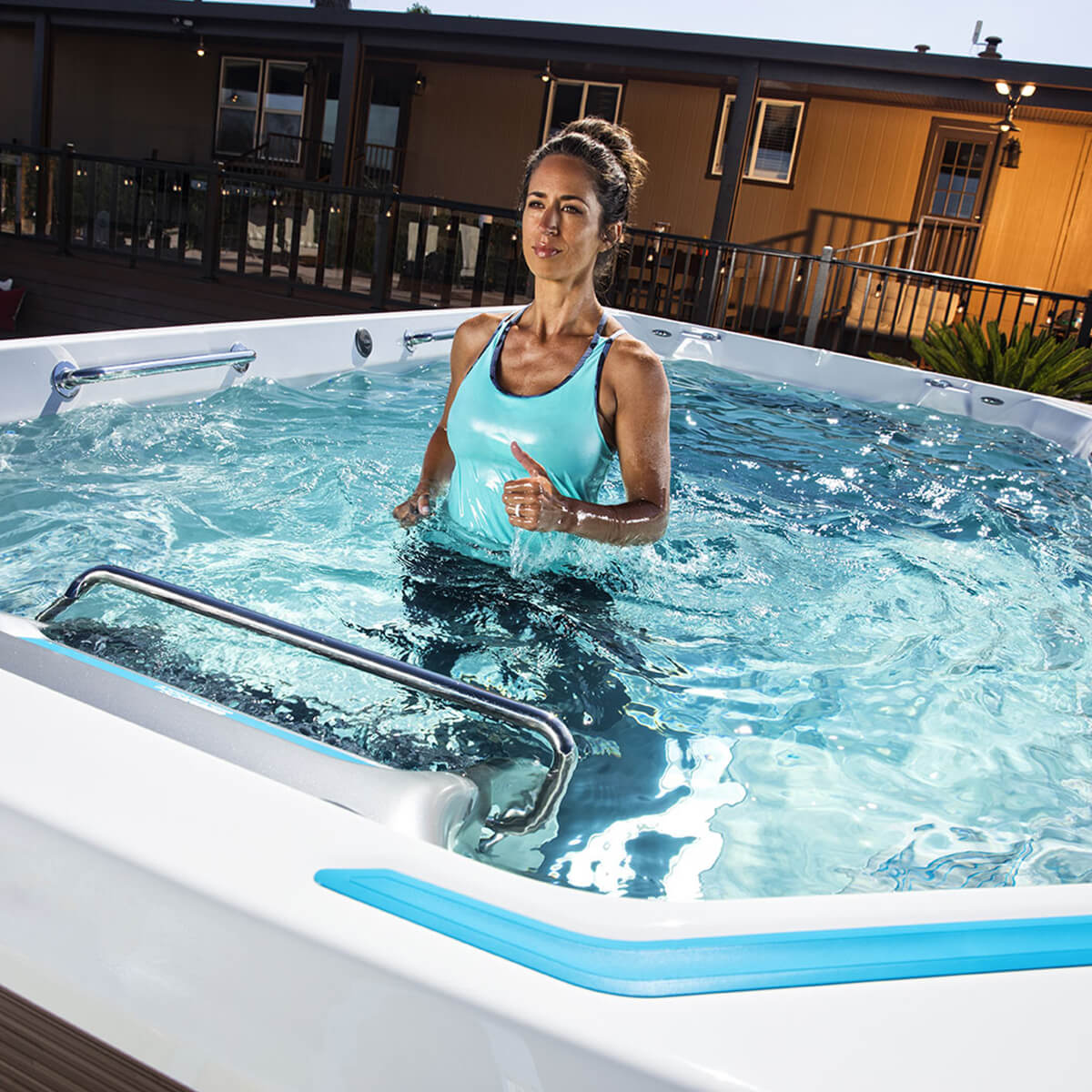

The optional Endless Pools hydraulically powered underwater treadmill offers low-impact running and walking options for all of the cardiovascular benefits of exertion without the negative side effects often felt with land-based exercise.
Treadmill speeds vary from 0 – 5.5. MPH and can be combined with the swim current for increased resistance against core, leg, and upper body muscle groups.
After your workout, reenergize with a muscle massage. The standing spa jets on the E550 let you soothe tired leg, back and neck muscles while standing. The unique jetting position, exclusive to this model, makes it easy to target the whole body.
1 Large Rotary Jet
6 Medium Rotary Jet
16 Mini Jets
Remote Control for Swim Machine & Underwater Treadmill
The swim machine flow ranges from 3.43 to 1:08 minutes per 100 yards, and can be easily adjusted for precise pace selection.
Hydraulic Power Unit
The Hydraulic Power Unit (HPU) is the heart of the Endless Pools Fitness Systems. It pumps high-grade biodegradable vegetable oil to the underwater motor for both the swim machine and the treadmill. Fitness Systems with both a treadmill and swim machine contain two HPUs which are driven by an incredibly efficient 5HP motor. This design allows for maximum power, while remaining energy efficient.
14-Gauge Steel Frame & ABS Base Pan
This model is built on an extremely durable, 14-gauge galvanized steel frame and ABS base pan.

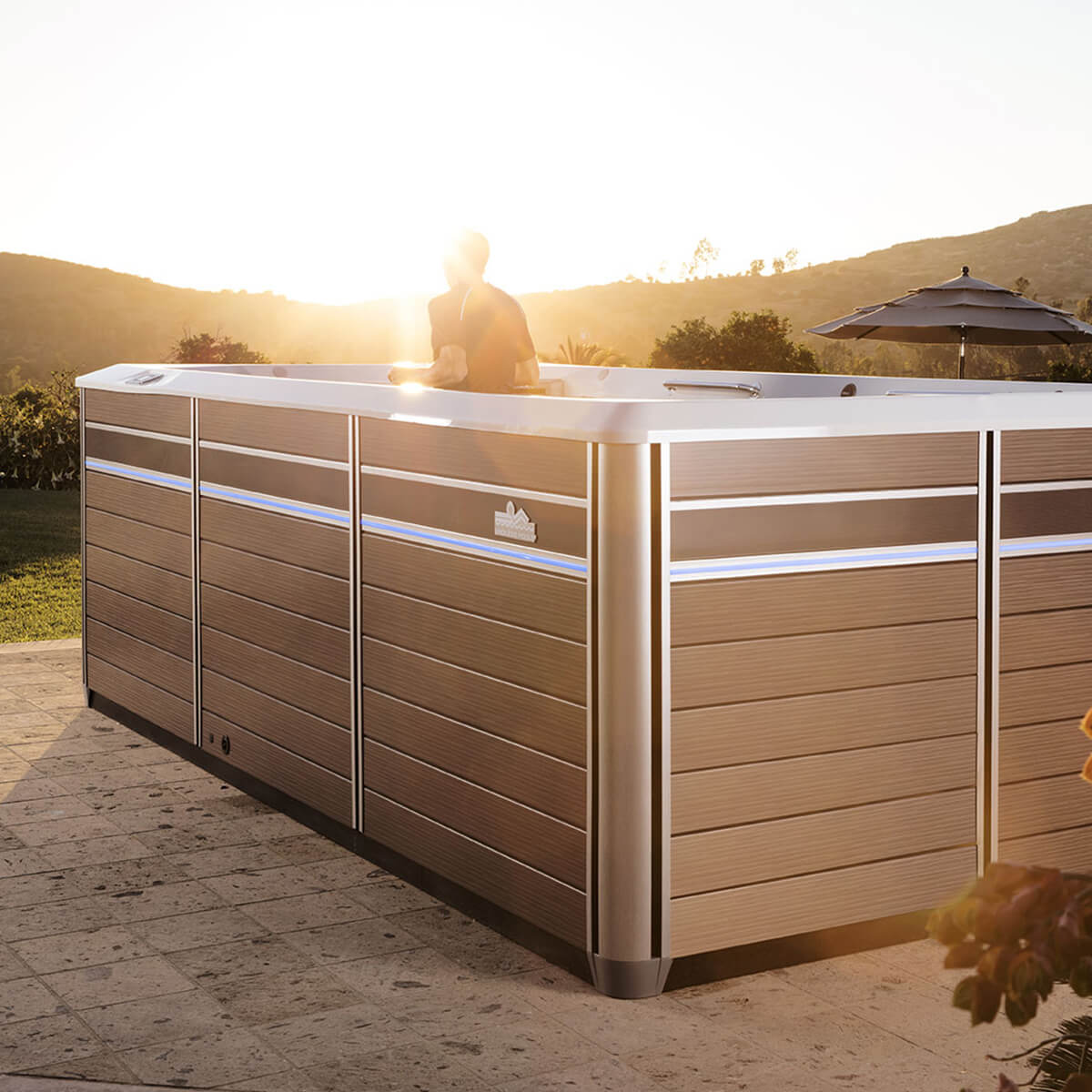

Outside, the LED Perimeter Illumination provides dramatic impact and ample brilliance. Inside, 24 multi-color LED points of lights blend function and beauty.
Water Management System
Endless Pools Fitness Systems feature a dual water purification system that combines Ultraviolet C (UVC) with eco-friendly CD Ozone, commonly known as Advanced Oxidation Process (AOP), to neutralize contaminants. The continuous water rotation from the circulation pump, coupled with 200 ft. of filtration, ensures ease of maintenance and water that is always exercise-ready.
Keeping your energy bill low is important. The Tri-Thermic™ Barrier System, a standard feature on all Fitness and Exercise Systems, provides three layers of insulation to conserve heat, enhance the energy efficiency, and lower operating costs.
The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystrene) foam and reflective film attached to the inside of the cabinet, combined with two-inch think heat blanket made of high-quality recycled textile fibers and foil film, attached to the inside of the steel frame. Together these materials provide maximum thermal performance.
The Tri-Thermic Barrier System achieves certification to current California Energy Commission (CEC) and APSP 14 National Standards and already meets the upcoming 2018 CEC standards.
Control & Auxiliary Panels
Endless Pools Fitness Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting, and hydromassage jets.
Additionally, the fitness systems’ auxiliary control panel is located on the opposite side from the main panel for added convenience when controlling lighting and hydromassage jets.
Install the optional plug-and-play Gecko® In.Touch Wifi and Mobile App and you’ll gain full control of the system’s temperature, lights and jets from any wifi-enabled tablet or mobile device, anywhere, anytime.
Anchors and Handrails for Aquatic Fitness Accessories
E550 is equipped with built-in anchors to attach fitness accessories including an optional swim tether and resistance bands.
Fitness System Series
Add more options to your workout with resistance bands. Simply attach the bands to the built-in anchor points on your Endless Pools® Fitness System for a variety of strength-building exercises. Set includes 3 pairs of color-coded resistance bands (10, 15 and 20 lbs.), with comfort-grip handles. Suitable for all levels.
All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.
The optional pace display is a necessity for any swim machine or treadmill user who wants to measure performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective workout.

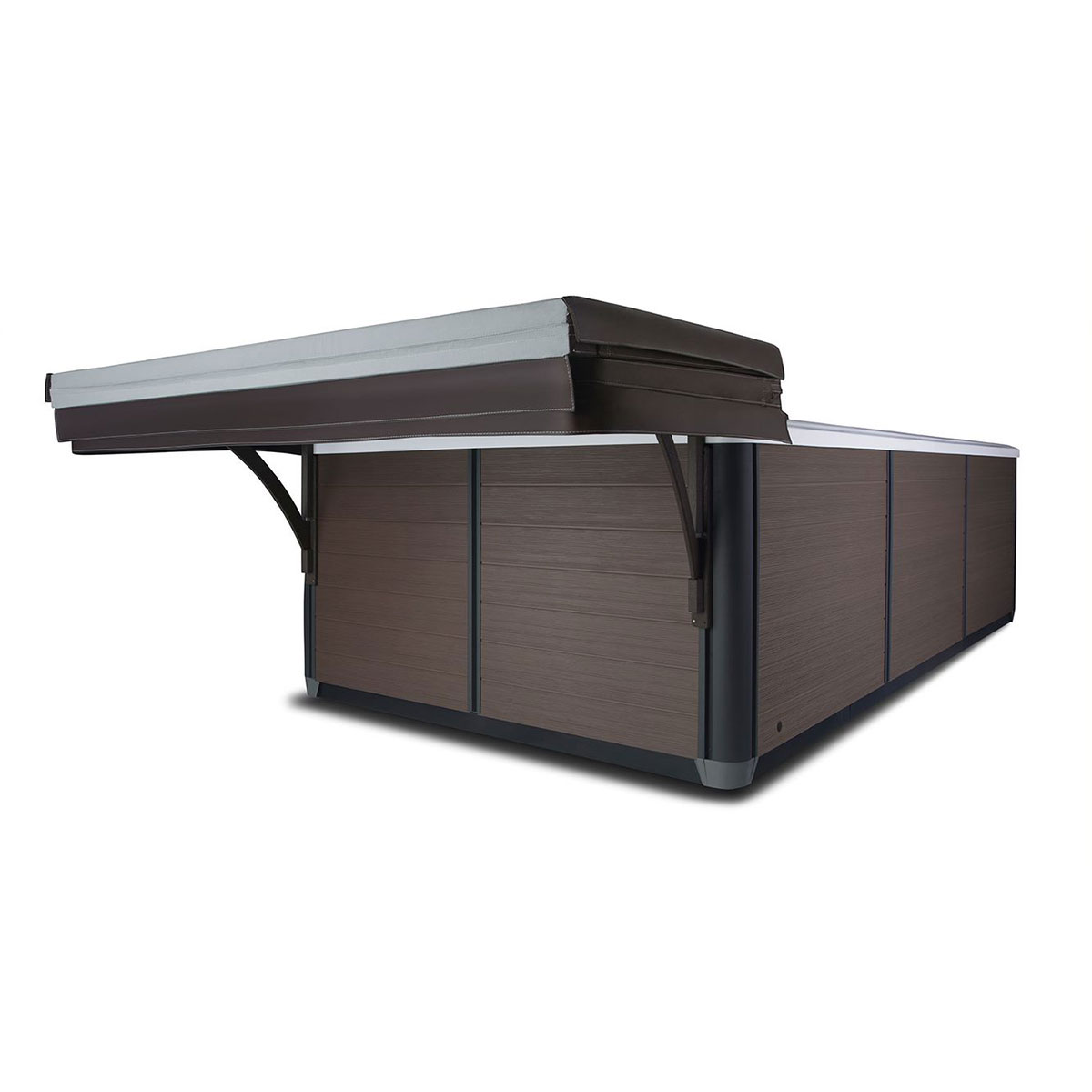

A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.

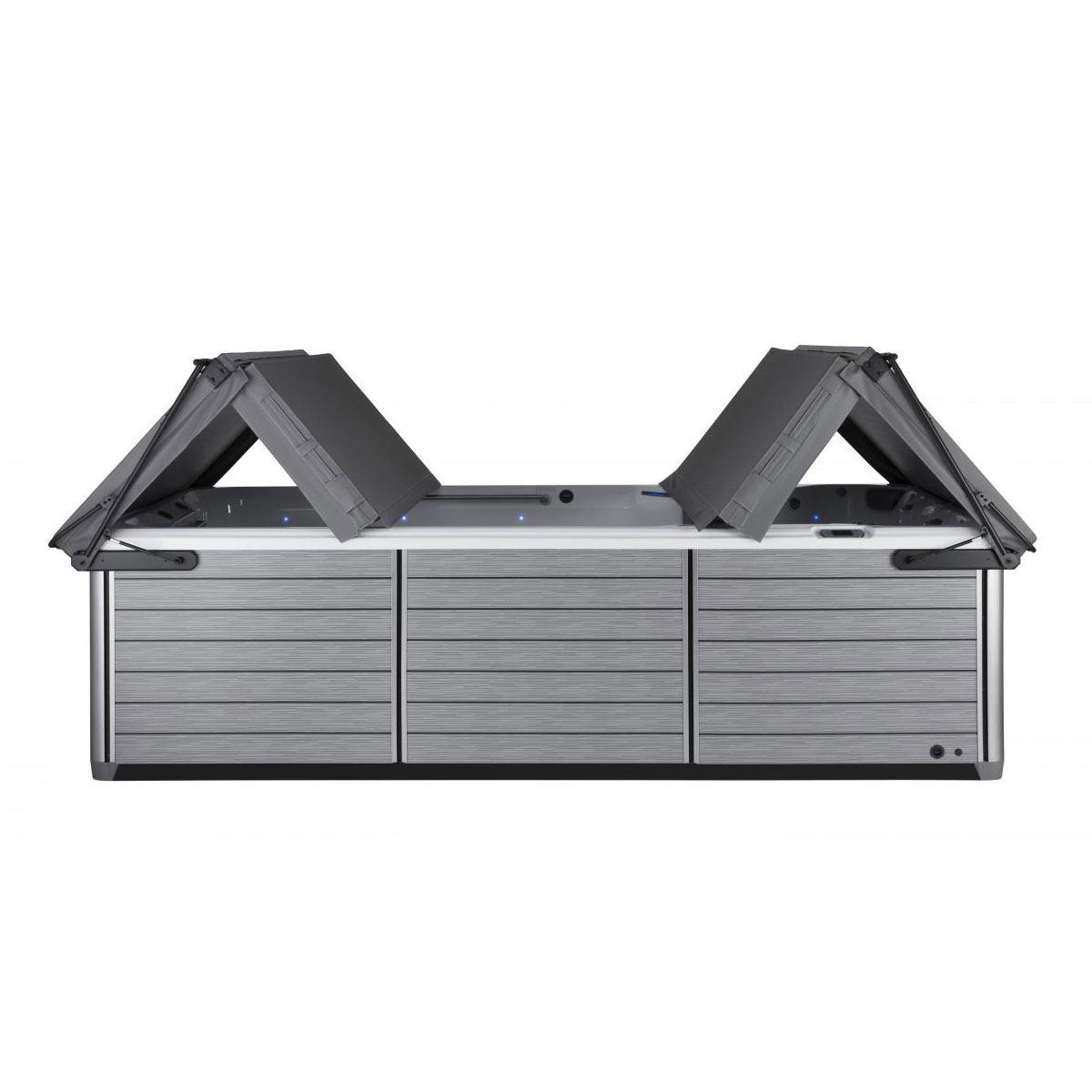

The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.
See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.
For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.
Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.
Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.
SwimDek® Surface Kits are an excellent option for exercise and play! Its patented, nonabsorbent material provides an exceptional tractions surface and added comfort. SwimDek is proven to withstand outdoor aquatic environments and remain beautiful and functional over time. Floor and Step Kits are sold separately.
